RhinoStop® Elite Guardrail
Fully-modular guardrail system.
RhinoStop® Elite is a fully modular car park barrier that protects the exposed edges of parking decks and takes vehicle impact without the bulk of a welded guardrail. Its slim, architectural profile suits visible facades and rooftop levels where the barrier is part of how the building looks, not just how it performs.
Metal Fencing Specialists installs RhinoStop® Elite across car parks, warehouses and commercial sites in Sydney to your engineer’s specification.

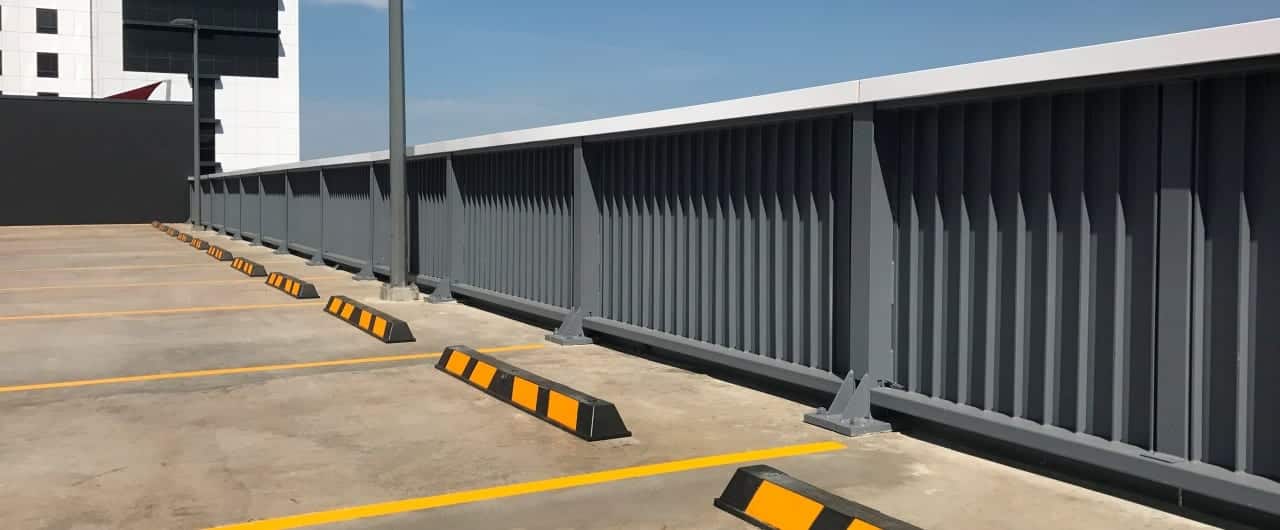

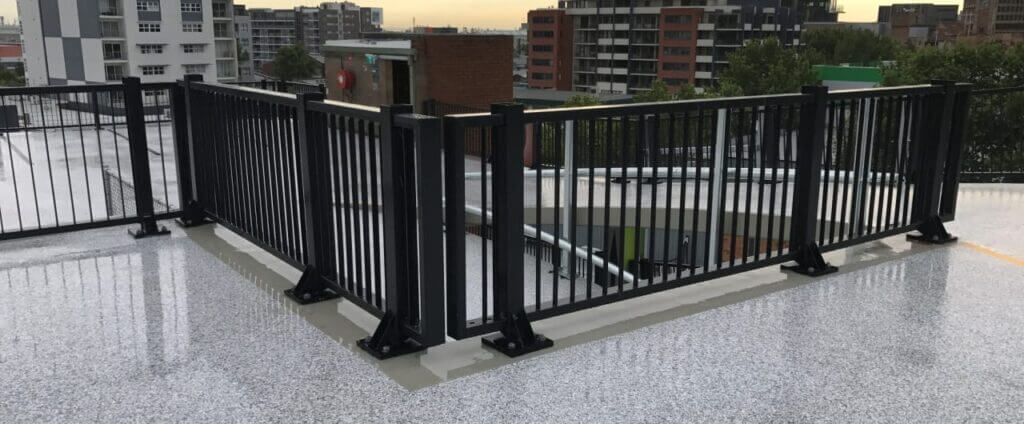

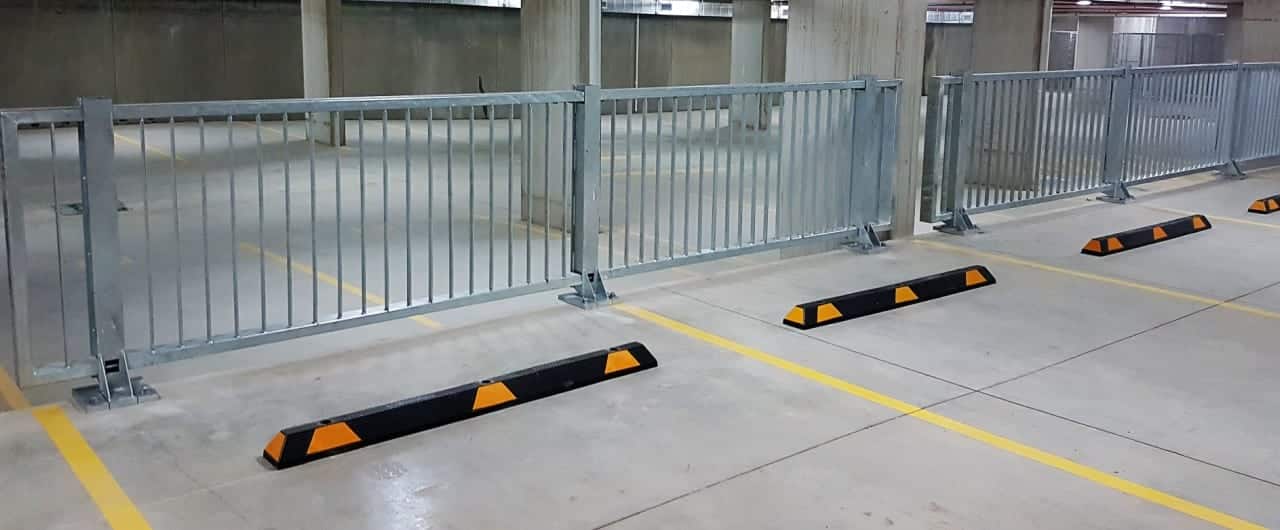

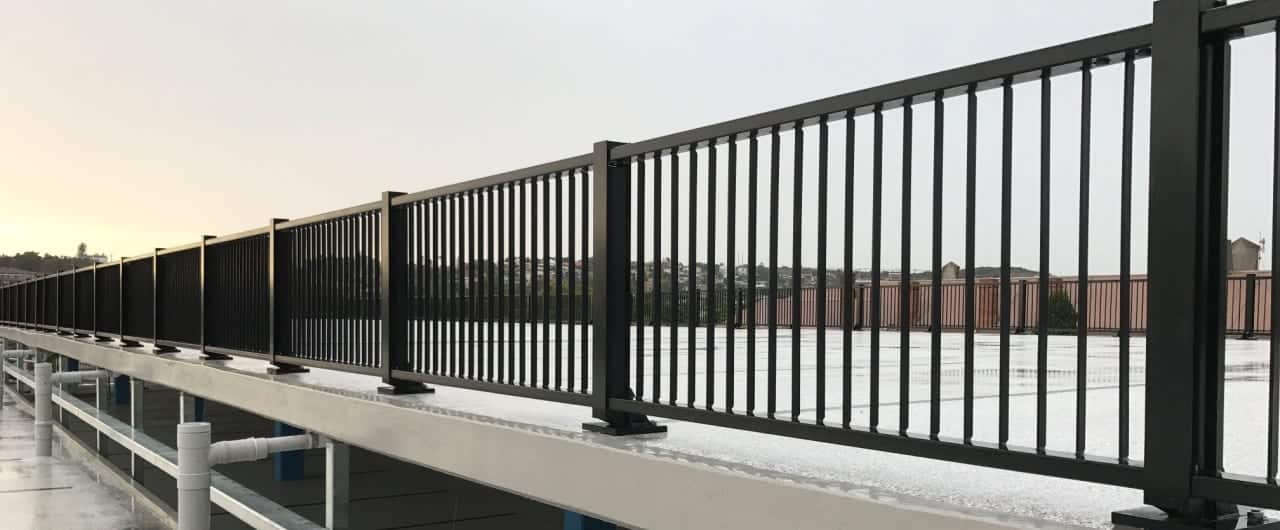

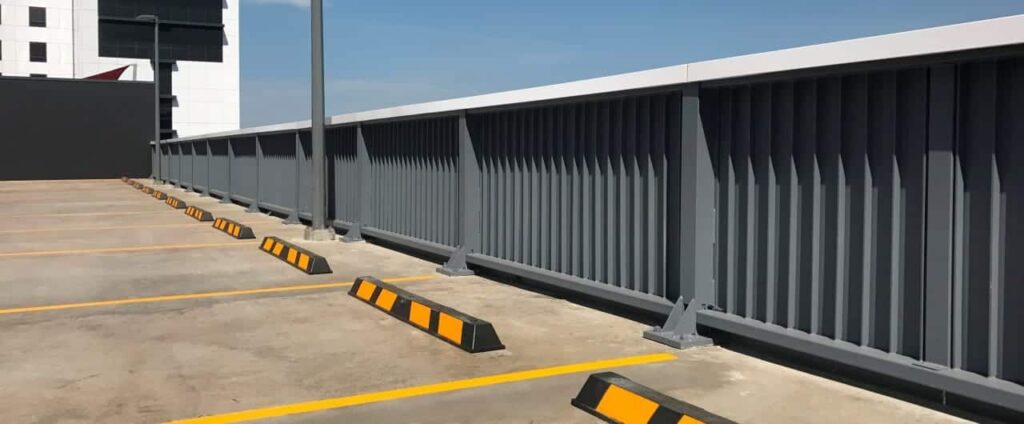

RhinoStop® Elite Guardrail Gallery
Industry leading impact protection.
RhinoStop® Elite from Safe Direction leads the way in the car park barrier industry and can effectively absorb high-speed impact loads of up to 40kN, offering superior SUV impact protection. The parking barrier system’s innovative yielding base plate design ensures the vehicle’s impact energy is absorbed, preventing damage to the concrete substrate.
- Attractive, fully modular, free-standing car park barrier system
- Designed to provide impact protection from heavier vehicles with higher centres of gravity
- Fully crash-tested in compliance with AS/NZS 2890.1: Parking Facilities – Off Street Car Parking
- Rapid assembly – only 2 anchor bolts per post are required
- Damage to the concrete substrate is prevented, preserving the system’s durability
- Standard post spacing: 2.3 metres
- Installed system height: 1100mm
- Optional 1300mm sight rail
- Hot-dip galvanised components with powder-coated finish option
RhinoStop® Elite Guardrail FAQS
RhinoStop® Elite is designed for use as a crash barrier in car parks, warehouses and general fencing requirements such as in outdoor areas in which pedestrians need to be protected from vehicles
The system height is 1100mm with the option for a 1300mm sight rail
The post spacing is 2.3m
The minimum embedment depth is 100mm
